Quick Details

  • Condition: New
  • Type: Linear
  • Application: powder
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: DY
  • Model Number: DZSF520-1P
  • Voltage: 220V/380V
  • Power(W): 2*0.4kw
  • Dimension(L*W*H): 2000*500*1500mm
  • Weight: 240kg
  • Certification: ISO9001:2008
  • Warranty: 18 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Pearl sand linear vibrotion screen of Singapore suppliers
  • Machine Material: carbon steel or stainless steel
  • Color: White, Blue, Grey and optional
  • Function: Screening\separation\sorting\sieving
  • Frequency: 1000rpm
  • Capacity: 300-500kg/h
  • Noise level: Low 75dB
  • Installation: Engineer Guide
  • Service: 24 Hours Hot Line
  • Motor: double Vertical Vibrating Motor

Packaging & Delivery

Packaging Details Plywood case, wooden case or according to customer's requirement
Delivery Time linear vibrating sieve: 20 days after receipt of your payment.

 Working principle:

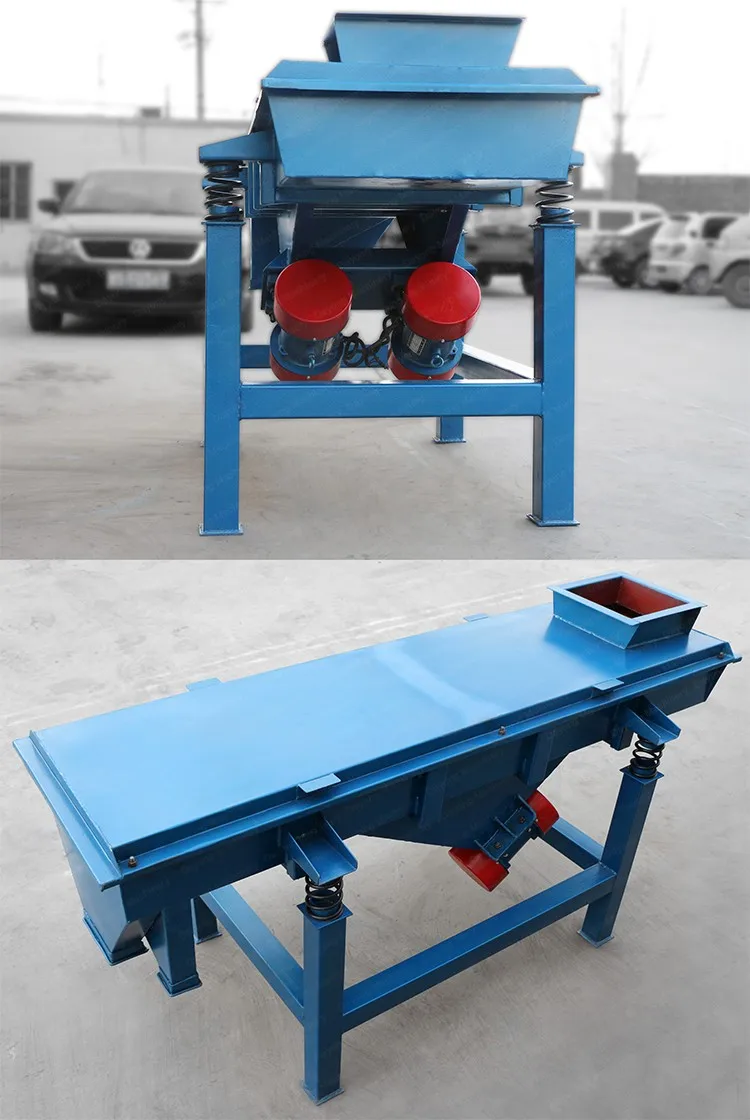

High efficiency liner vibrating screen uses double vibrating motors to drive, when two motors synchronous reversely rotate, exciter forces by eccentric block generating are undone in parallel with the direction of motor axises and relative to screen deck, under the influence of resultant force of exciter force and materials self weight, materials are throwed up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatical operation.



More security, firm, durable, and convenient.





Features:
1. Low energy consumption
2. Large productivity
3. Simple structure and easy maintenance
4. Fully closed structure
5. No dust scattered
6. Automatic discharging
7. More suitable for assembly line

We promise 18 months warranty:
Whatever questions you meet, our professional technician will help you to solve it free, and if the vibration motor has some questions, we will change a new one for you.



Application:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Organic fertilizer industry.

3) Plastics industry.

4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc

Model

W*L (mm)

Power(KW)

Mesh size(mm)

screen surface angle (°)

Amplitude(mm)

Layer

DZSF-520

500*2000

2*(0.4-0.75)

2-200

0°-7°

4-8

1-7

DZSF-525

500*2500

DZSF-1020

1000*2000

DZSF-1025

1000*2500

2*(0.4-1.1)

DZSF-1030

1000*3000

2*(1.1-1.5)

DZSF-1040

1000*4000

DZSF-1235

1200*3500

2*(1.1-2.2)

DZSF-1250

1200*5000

DZSF-1535

1500*3500

DZSF-1560

1500*6000

2*(2.2-3.7)

DZSF-1845

1800*4500

DZSF-2050

2000*5000

DZSF-2260

2200*6000



Welcome to visit our company in anytime, we are always love to treat you!



  • Easy to operate and maintain.
  • Low consumption with high yield and low cost.
  • Fully enclosed structure, automatic layout, more suitable for pipeline operations.
  • Good sealing without dust flying.
  • Can be used for single or multi layer.
  • Material auto discharge, be able to continuous operation.
  • Every part of the screen box used copper plate and section welded together.
Packing information



Options:
- AC power
- voltage
- structure material
- Custom paint color
- Increase or decrease parts




Not only Sell Machines, But also Build Solutions.

  • Design the equipment according to your technical request.
  • Providing solutions according to the real situation.
  • If needed, relevant technical documents would be available.
  • Payment terms is flexible.
  • Delivery on time
  • Warranty: 18 months.
  • 13 years engaged in machinery production
  • 65 experienced R & D personnel to provide technical guide
  • Certification supporting
  • Standard production workshop
  • Professional sales team



1.How to choose the machine?

a: Customers who are familiar with technical performance and parameters can directly order.

Note: You had better send us the pictures you have ever used.



b: Customers who need us to choose the models, please follow the information, tell us:

  • Name and feature of the raw material?
  • Aim of using: get rid of impurity, filtration, grading
  • Handling capacity: kg /h,L/h
  • The raw material size: (mesh or size)
  • How many final materials you want, or how many layer you need?

Note: You had better send us the relevant pictures about the details.

2.How many kinds of material are supported?

  • All stainless steel (304, 316L)
  • All carbon steel Q235A
  • Contact part Stainless steel.

3.Is it special requirement available?

Yes, the equipment could be designed according to customer's using aim or special requirements.
