Quick Details

  • Condition: New
  • Type: Linear
  • Application: Ore
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: DAYONG
  • Model Number: DZSF-520
  • Voltage: 110v,220V,230v,380V,415v,440v
  • Power(W): 0.75kw
  • Dimension(L*W*H): 500*2500mm
  • Weight: 200kg
  • Certification: ISO9001:2008
  • Warranty: 1 Year +6 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • type:: linear
  • layers:: 1~5 layers
  • dimensions:: width*length(500mm*2500mm)
  • material:: 304 or carbon steel
  • Color:: Green,blue,white,orange or other
  • condition:: new
  • name: Linear Sand Ore Iron Powder Vibrating Screen
  • Sieve: Military industry sieve
  • Motor: Double motor
  • Professional use: metallurgy,metal screen

Packaging & Delivery

Packaging Details Packed in standard export wooden case packing.
Delivery Time 10-12 days after receipt of your payment in advance

Inquiry us for $200coupon,only 1 week left.


Description:

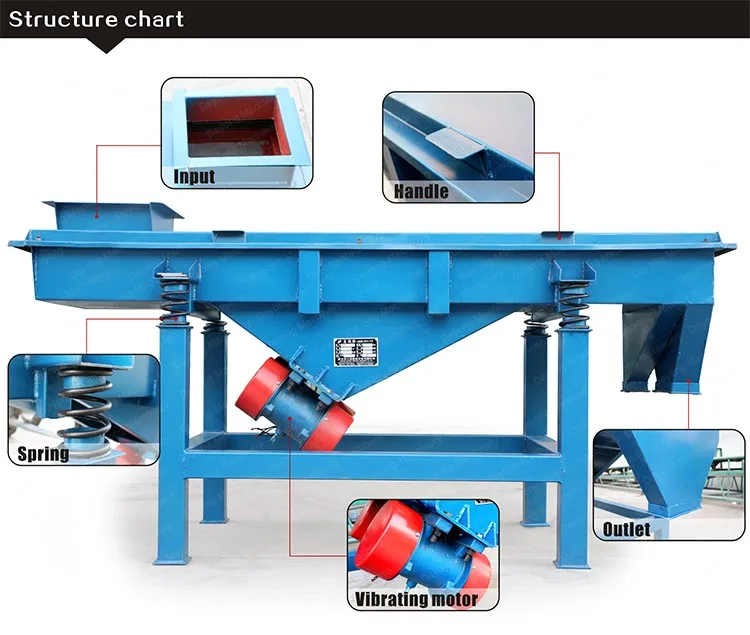

Below DZSF 520  Linear Sand Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.



Inquiry us for $200coupon,only 1 week left.


  • Easy to operate and maintain.
  • Low consumption with high yield and low cost.
  • Fully enclosed structure, automatic layout, more suitable for pipeline operations.
  • Good sealing without dust flying.
  • Can be used for single or multi layer.
  • Material auto discharge, be able to continuous operation.
  • Every part of the screen box used copper plate and section welded together.







Application in details:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2)  Organic fertilizer industry.

3) Plastics industry.

4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc



Inquiry us for $200coupon,only 1 week left.


Model

W*L (mm)

Power(KW)

Mesh size(mm)

screen surface angle (°)

Amplitude(mm)

Layer

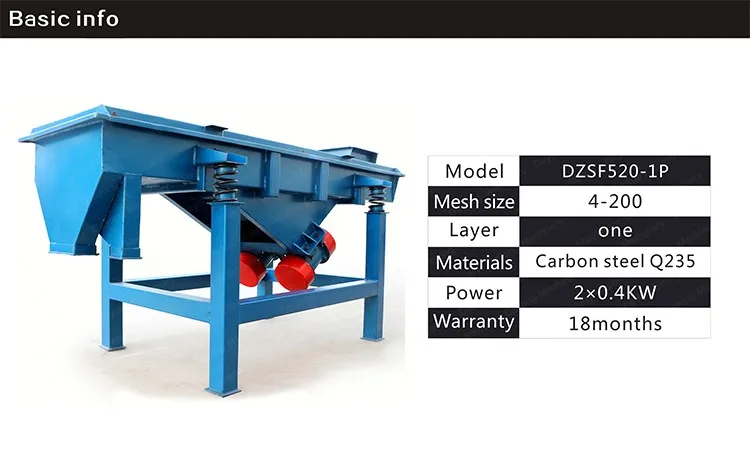

DZSF-520

500*2000

2*(0.4-0.75)

2-200

0°-7°

4-8

1-7

DZSF-525

500*2500

DZSF-1020

1000*2000

DZSF-1025

1000*2500

2*(0.4-1.1)

DZSF-1030

1000*3000

2*(1.1-1.5)

DZSF-1040

1000*4000

DZSF-1235

1200*3500

2*(1.1-2.2)

DZSF-1250

1200*5000

DZSF-1535

1500*3500

DZSF-1560

1500*6000

2*(2.2-3.7)

DZSF-1845

1800*4500

DZSF-2050

2000*5000

DZSF-2260

2200*6000



 Packing information:



Available Options:
- Voltage:110v,220V,230v,380V,415v,440v
- structure material:all carbon steel Q205;Contact part stainlee steel;all stainless steel 304/316L
- Custom paint color:Green,blue,white,orange or other
- Increase or decrease parts:as your request




Not only Sell Machines, But also Build Solutions.

  • Design the equipment according to your technical request.
  • Providing solutions according to the real situation.
  • If needed, relevant technical documents would be available.
  • Payment terms is flexible.
  • Delivery on time
  • Warranty: 12 months.
  • 13 years engaged in machinery production
  • 65 experienced R & D personnel to provide technical guide
  • Certification supporting
  • Standard production workshop
  • Professional sales team



1.How to choose the machine?

a: Customers who are familiar with technical performance and parameters can directly order.

Note: You had better send us the pictures you have ever used.



b: Customers who need us to choose the models, please follow the information, tell us:

  • Name and feature of the raw material?
  • Aim of using: get rid of impurity, filtration, grading
  • Handling capacity: kg /h, L/h
  • The raw material size: (mesh or mm)
  • How many final materials you want, or how many layer you need?

Note: You had better send us the relevant pictures about the details.

2.How many kinds of material are supported?

  • All stainless steel (304, 316L)
  • All carbon steel Q235A
  • Contact part Stainless steel.

3.Is it special requirement available?

Yes, the equipment could be designed according to customer's using aim or special requirements.
